For today's assignment, be sasically just had to record our progress toward our final project.

So to start, I started building the base for my drawing machine so it can be "portable" in a way. (I made a base with pieces of card coard stacked onto each other so that it will be easier for me to attach the stepper motors and the dawing paper.)

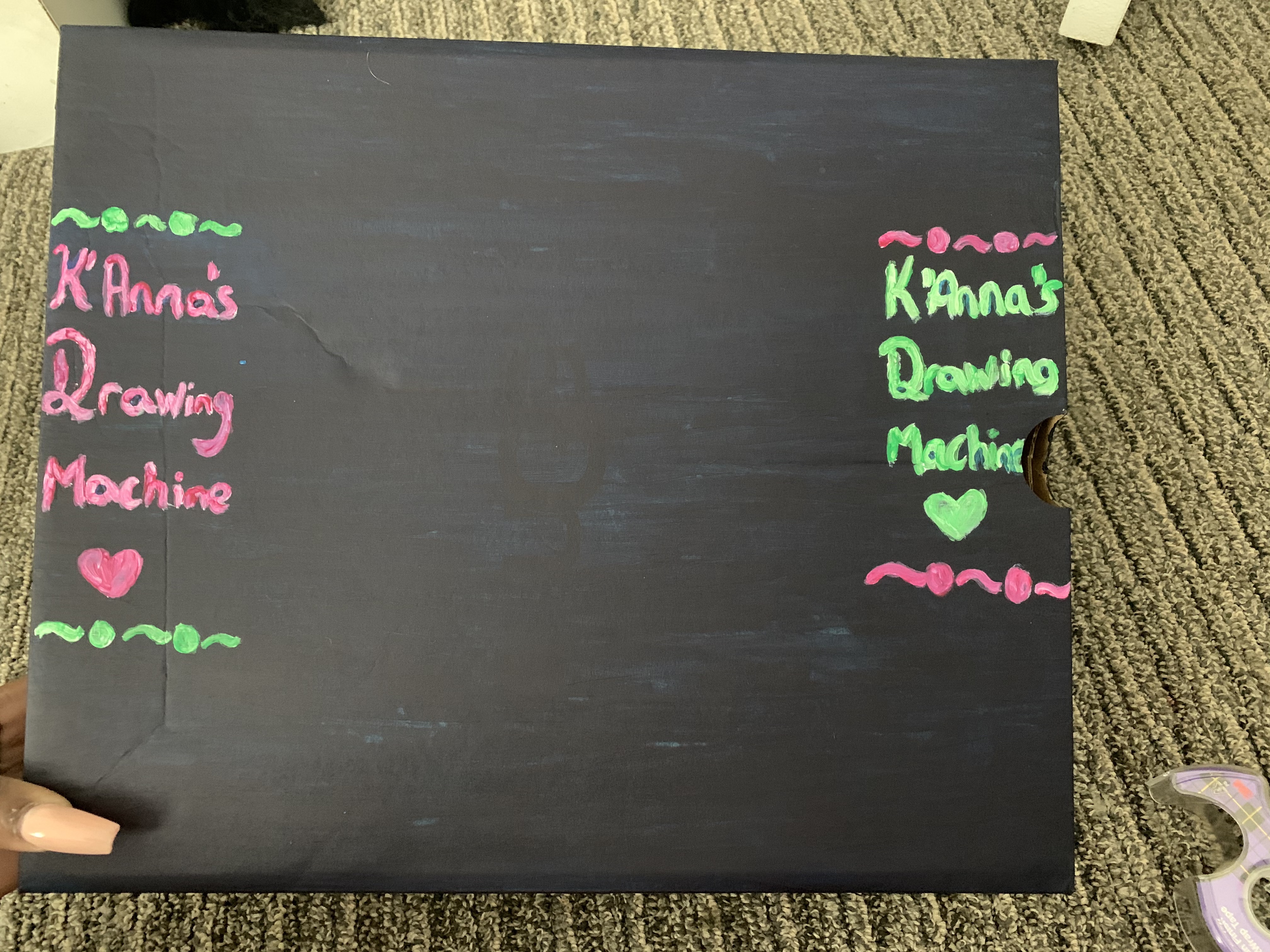

I ended up changing my mind and decided to use a shoe box instead. So, I painted the show box and gave it some designs.

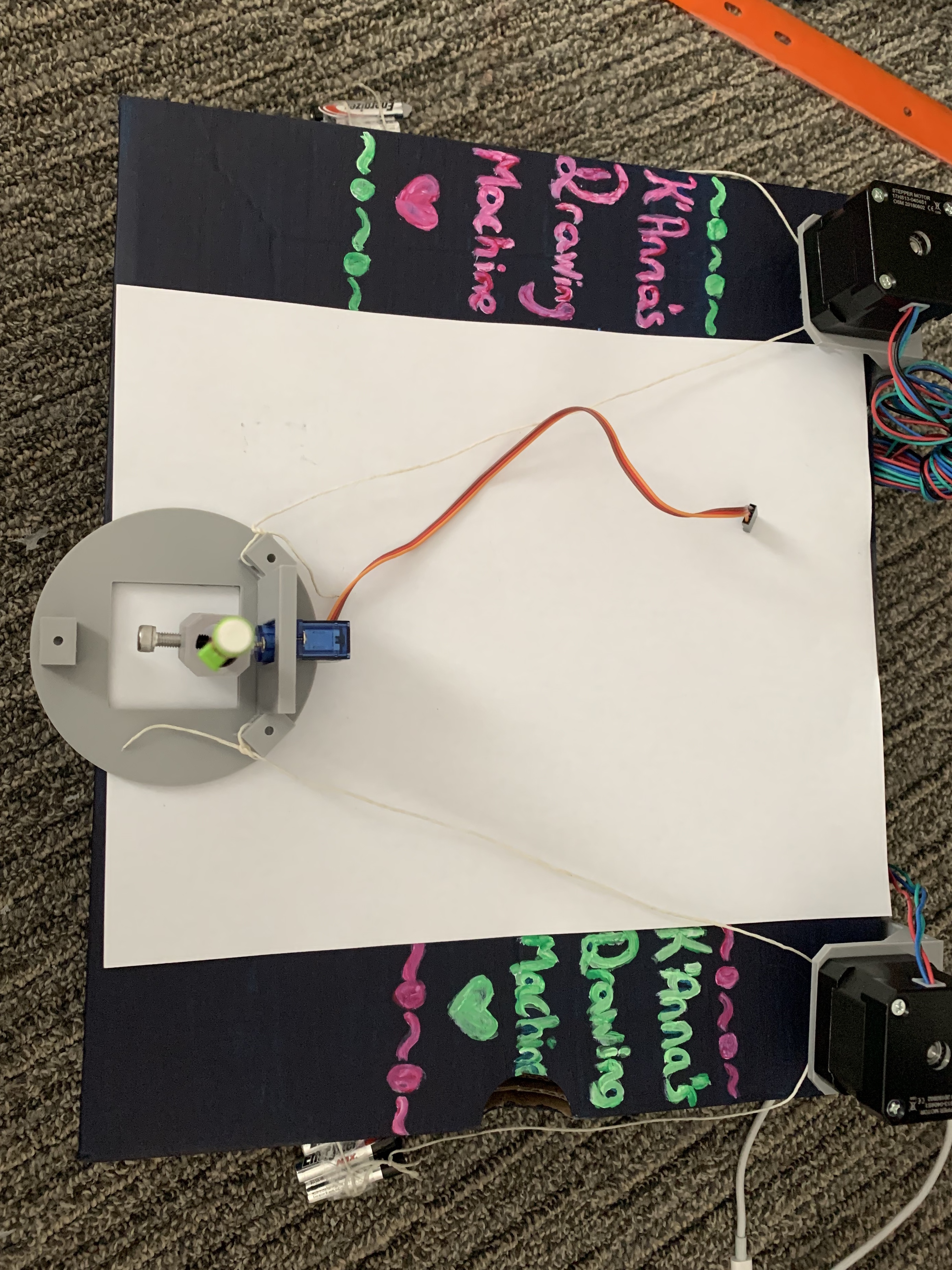

Then, I added the stepper motors, and the pen/ pencil holder (has servo motor attached). Following that, I added the strings to the holder and strung it around the steppers.

Then after that, I added three batteries to each string to act as a weight.

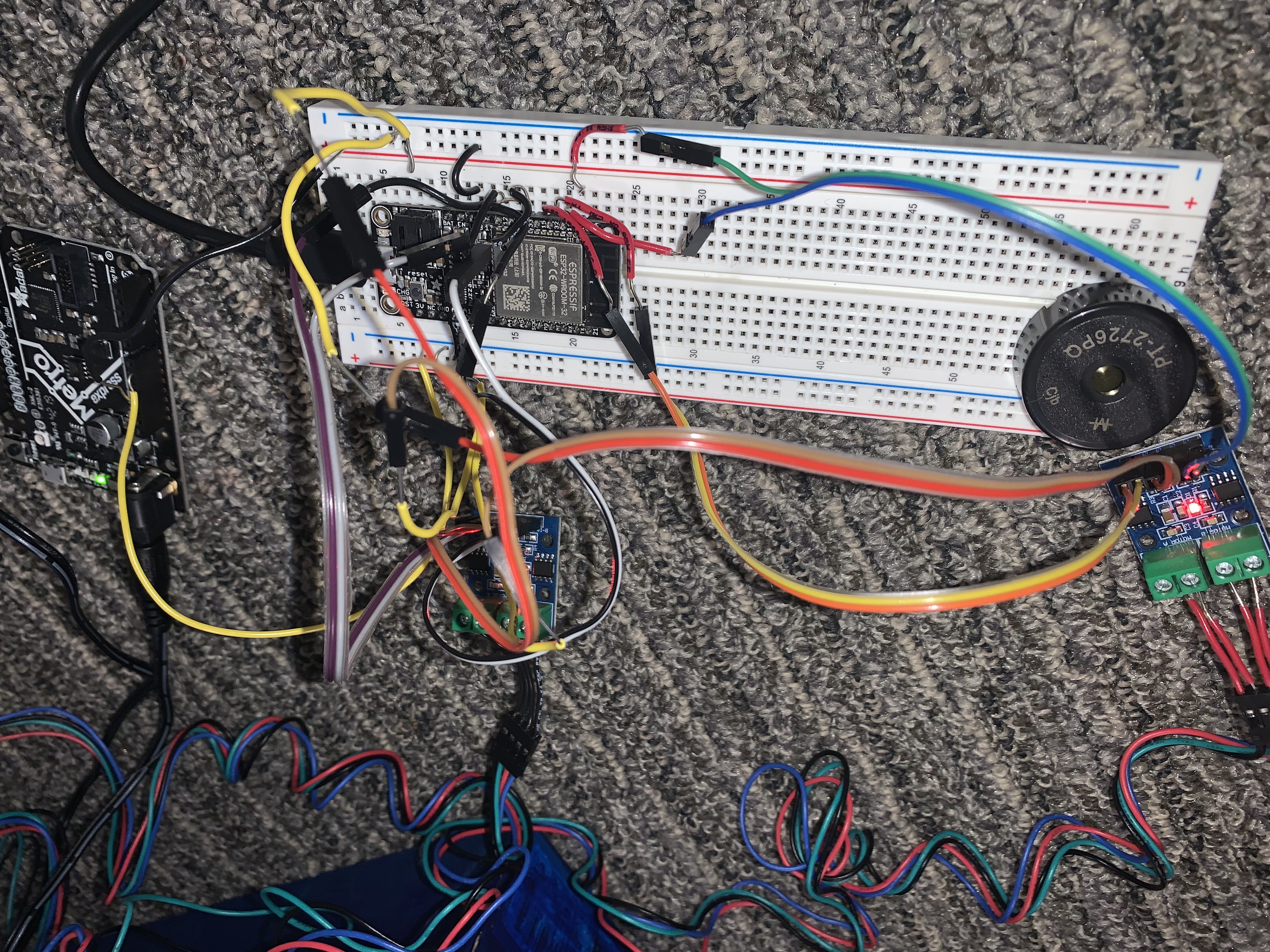

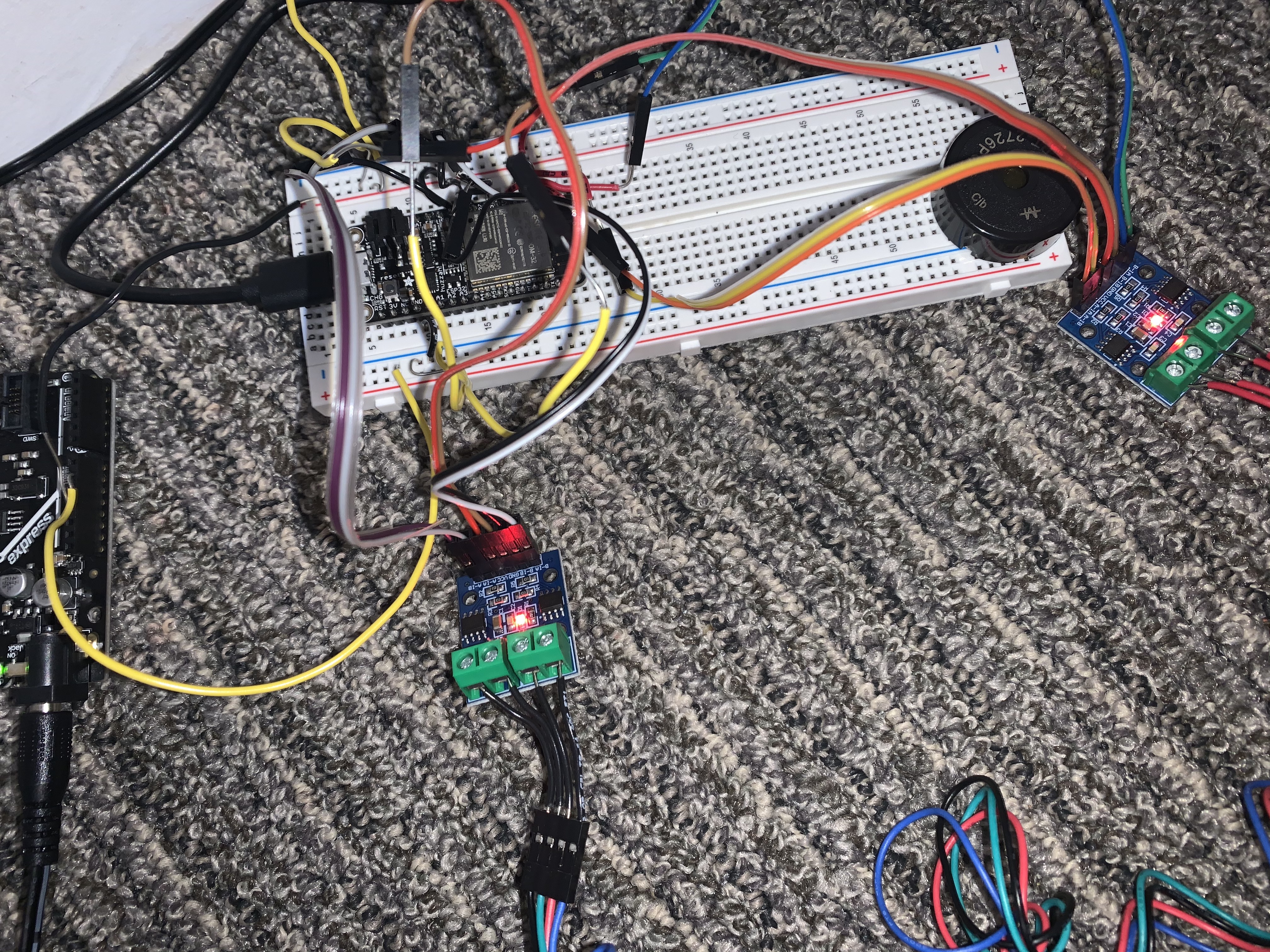

Here's my circuit.
